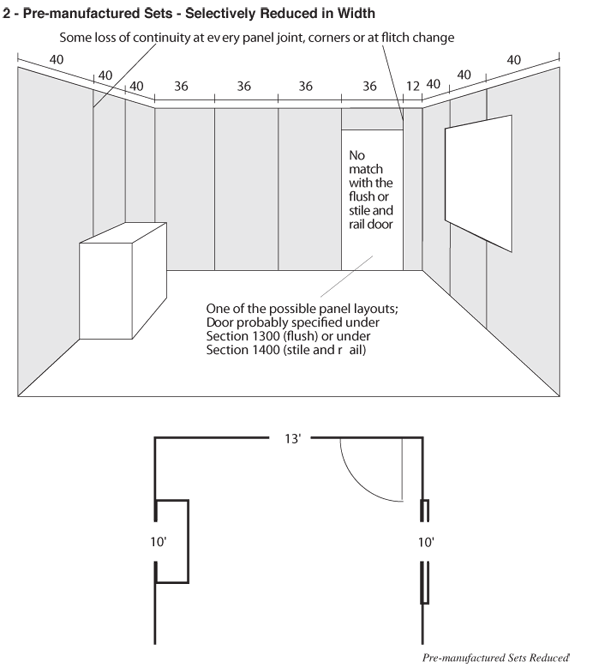

Veneered panels used in casework or paneling in the same area may be matched to each other. This important component of the project must be carefully detailed and specified. The natural growth patterns of the tree will cause the figure on the sequential panels to ascend, descend, or show a “grain progression” as the eye moves from panel to panel. These illustrations were developed in Imperial measure and have not been converted for this edition. The four common methods are: These are panels just like those in the previous illustration, usually made and warehoused in 4' x 8' or 4' x 10' sheets in sequenced sets. They are often selected for continuity, recut into modular widths, and numbered to achieve the appearance of greater symmetry. If more than one set is required, matching between the sets cannot be expected. Similarly, doors or components often cannot be fabricated from the same flitch materials, resulting in noticeable mismatch. 1 - Pre-manufactured Sets - Full Width 3 - Sequence-Matched Uniform Size Set 4 - Blueprint-Matched Panels and Components
|
|||||||||||||||
